SolarTerrace Tripod

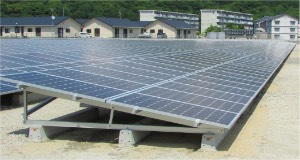

The PV-ezRack SolarTripod is designed for commercial PV-installations on flat roofs with tilted panels in portrait orientation. The supports are available in fix and adjustable tilt angles. The components are made entirely of structural grade (AL6005-T5) anodised aluminium and stainless steel. SolarTripod is available in two designs: single and double row panels.
Main Benefits
Quick Installation
Completely pre-assembled, the SolarTripod supports simply need to be unfolded and secured to the roof structure for installation. At most installations the legs require only 2 fixing points each and the rails can overcome large spans. All these features result in a fast, easy and cost efficient installation, crucial for commercial projects.
Suitable for corrosive environments
As the materials used in this product are stainless steel (SUS304) and 10μm anodised aluminium it can be installed even in the harshest corrosive environments.
Maximising installation size and output on small roofs
The DoubleTripod has two rows of PV-panels in portrait orientation. This allows you to perfectly utilise narrow roof sections while doubling the installation size and output, where you would normally only be able to fit one row of panels.
Simplicity
Bill of materials can be confusing and complicated. On a basic BOM for SolarTripod you will only find 6 components, keeping it simple and transparent for all parties to better understand and work with the product.
Technical Details
Module Orientation | Customised |
Tilt Angle | 10°-30° |
Foundation | Ballast |
Material | Main Structure: AL6005-T5 Fasteners: SUS 304 |
Standard | AS NZS 1170.2-2011 | EN 1991 | JISC 8955-2017 | ASCE 7-10 |
Warranty | 12 Years |
Resources
Video
View our instruction video on the SolarTerrace Tripod series:
Brochure
Product information
- Category: Gound Mounting
- Type: Flat
- Purpose: Demonstrating the various surfaces on which our mounting kits can be installed.
- Brochure: SolarTerrace Tripod
What makes our products stand out
Our 14-Panel Solar Terrace Kit is available as an effective ground-mounting solution. The PV-ezRack® SolarTerrace MAC is an economic ground-mounting system suitable for commercial and utility scale PV installations. It is manufactured from the latest magnesium aluminum zinc coating steel with excellent corrosion resistance and elegant surface.
